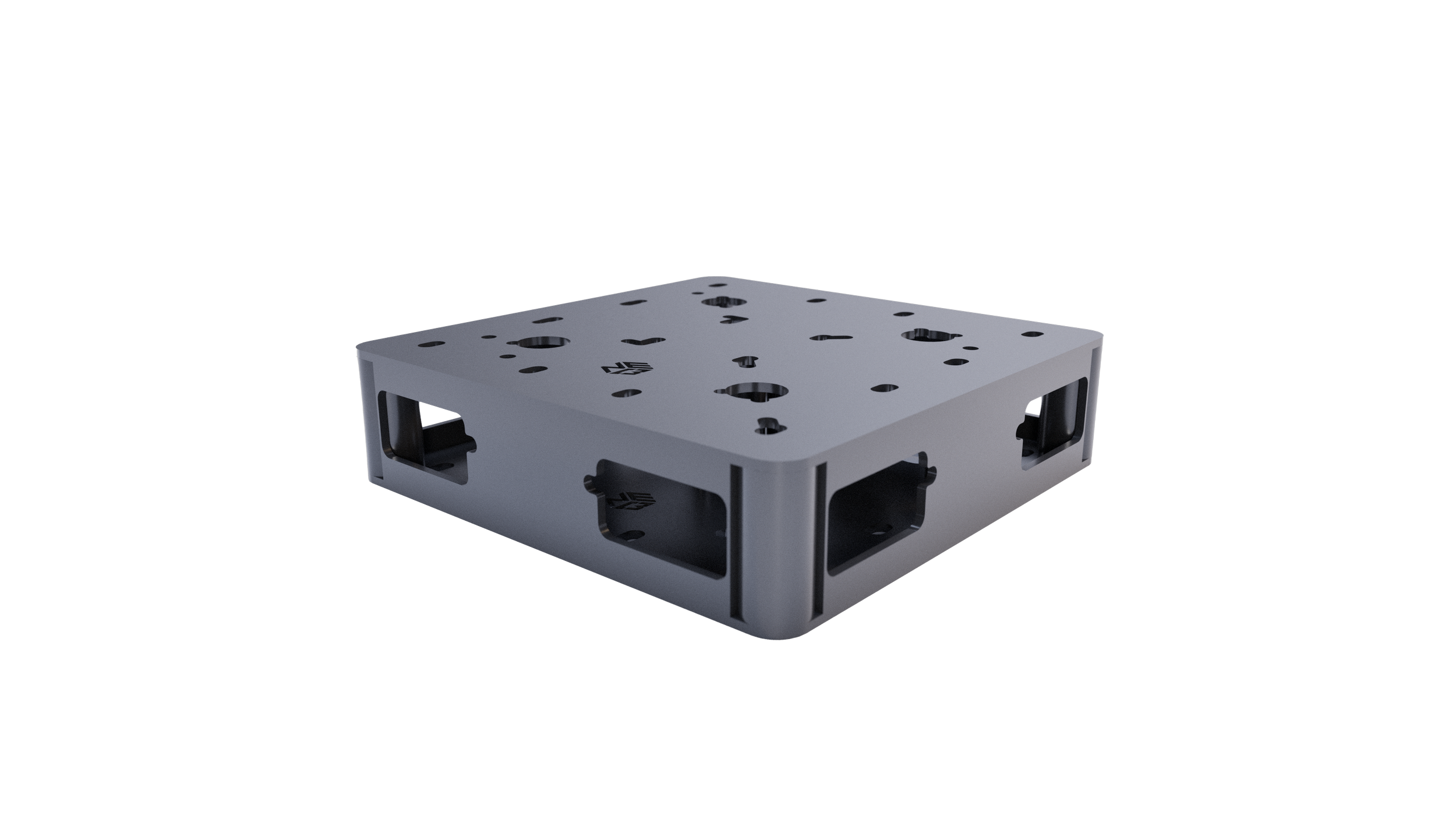

EZ HUG 2x2
The Ultimate Foundation Square
When stability is the only option, the EZ BLOCK HUG 2x2 delivers. By creating a massive 2' x 2' footprint, this unit provides the maximum possible lateral stability for high-wind environments and heavy-load rigging. It is the definitive solution for large-scale truss towers, LED wall supports, and massive ballast requirements.
Key Features
Massive Mounting Array: The 2x2 surface offers total flexibility for bolt patterns. Mount up to four 12" trusses simultaneously, center-mount a single heavy-duty 20.5" truss, or create custom offset configurations for specialized structural loads.
4-Block Cluster Integration: Engineered to perfectly house a "quad-stack" of your ballast units. Whether you are using the EZ BLOCK, CUBE, or BRICK, the HUG 2x2 turns four separate units into one unified, immovable 2' x 2' pillar.
Heavy-Duty Mobility: Features reinforced, extra-wide 4-way forklift channels. This allows for the safe transport and positioning of massive ballast clusters (up to 2,100 lbs depending on the blocks used) with ease.
Precision 24-Inch Alignment: Maintains the signature 6-inch riser height, ensuring that any combination of 18-inch EZ units hits that industry-standard 24-inch profile for seamless truss integration.
Detailed Specifications
Dimensions: 24" x 24" x 6"
Weight: Approximately 220 lbs
Material: Constructed from high-quality ASTM A36 Steel
"The EZ BLOCK HUG 2x2 is a cornerstone of the modular EZ system. It provides a wide, stable base that transforms separate ballast units into a single, high-capacity structural anchor.” - Adam"
2x2 EZ HUG + EZ BRICKS = 665lb event ballast
2x2 EZ HUG + EZ CUBES - 1565lb event ballast
2x2 EZ HUG + EZ BLOCKS = 2165lb event ballast

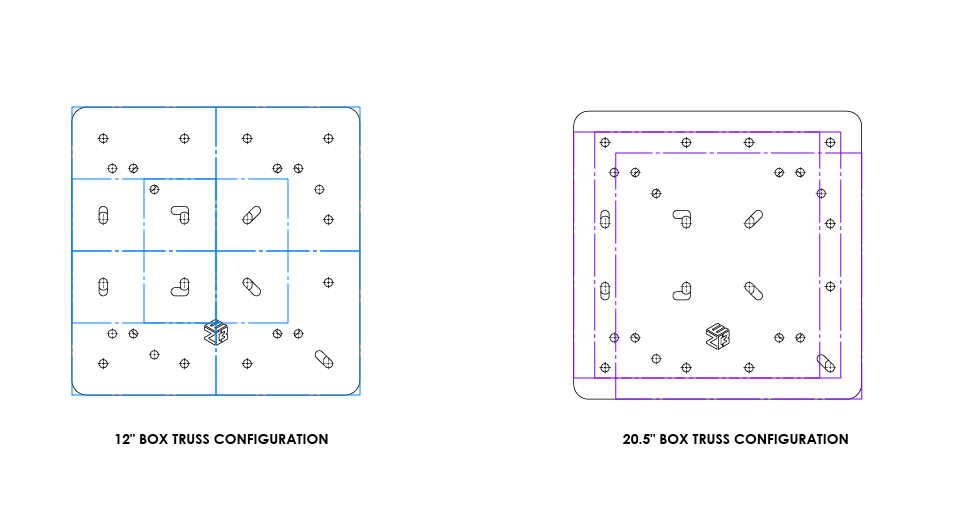

The EZ HUG 2×2 bolts to a 12” x 12” box truss and a 20.5” x 20.5” truss as indicated by the blue overlay for the 12” and the purple overlay for the 20.5”.
You can bolt 12” truss to each corner, and in the dead center. Place up to 4 sticks of 12” truss on the EZ HUG 2×2 at a time.
If you are using a 20.5” truss, you have the center, corner, and edge options available to mount.
DOWNLOADS
VectorWorks Library DOWNLOAD v2025
VectorWorks Library DOWNLOAD v2026
DWG Library DOWNLOAD
STEP Library DOWNLOAD
