ADD SOME “BASE”
Connect your EZ BLOCKS

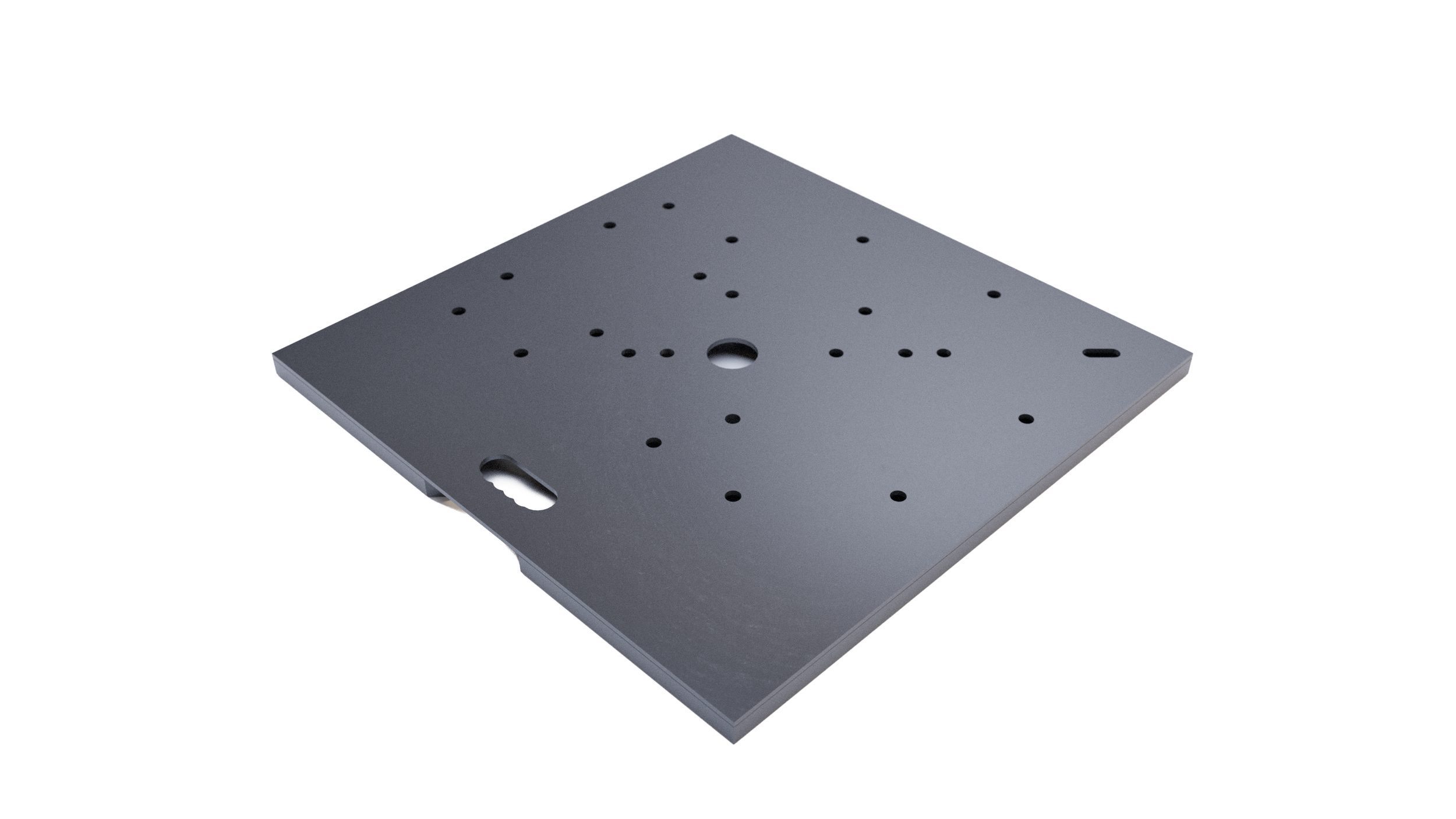

EZ BASE PLATE
STEEL base Plates
The EZ BASE PLATE is a 100 lb steel base measuring 30" x 30" that provides a stable footprint for professional trussing. It features versatile mounting holes to accommodate 12" and 20.5" vertical truss in center, corner, or edge positions. Designed for integration with the EZ BLOCK, this plate is a durable and adaptable solution for any production environment.
Why the EZ BASE PLATE?
The purpose of the EZ BASE PLATE is simple: to support your vertical truss.
Extreme Versatility: The multi-hole pattern allows you to mount both 12" and 20.5" truss in center, edge, or corner positions, giving you the flexibility to create everything from standard totems to flush-to-wall displays.
Superior Stability: Weighing 100 lbs with a wide 30" x 30" footprint, this steel base provides the necessary ballast to safely support tall vertical structures without the immediate need for bulky outriggers.
Integrated Cable Management: The built-in handle area doubles as a convenient pass-through, allowing you to run power and data cables cleanly through the base and up into the truss for a professional, trip-free setup.

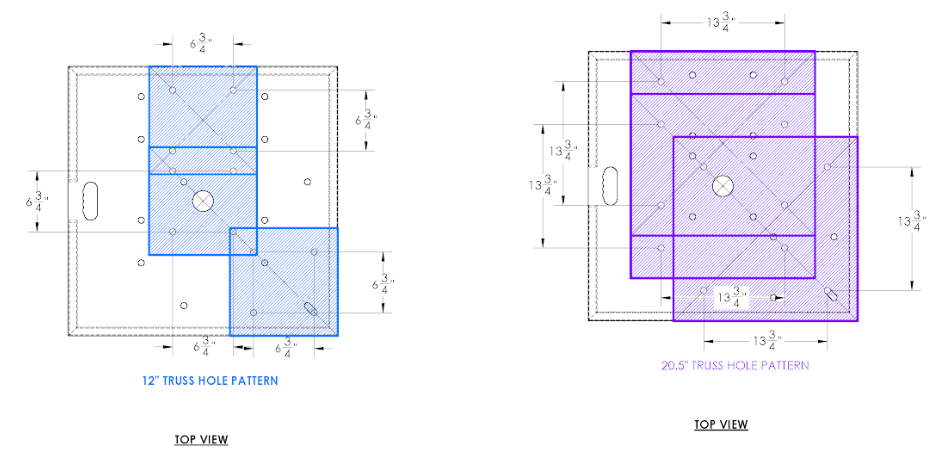

EZ BASE PLATE + 12” & 20.5” Truss
Mount an EZ BLOCK to the truss you use
EZ Base Plate connections to both 12” truss and 20.5” truss in center, corner, and edge locations. This STEEL base plate is cool.
EZ BASE PLATE + EZ BLOCK
Mount an EZ BLOCK to the EZ BASE PLATE
EZ BLOCK CENTER Mount to EZ Base Plate

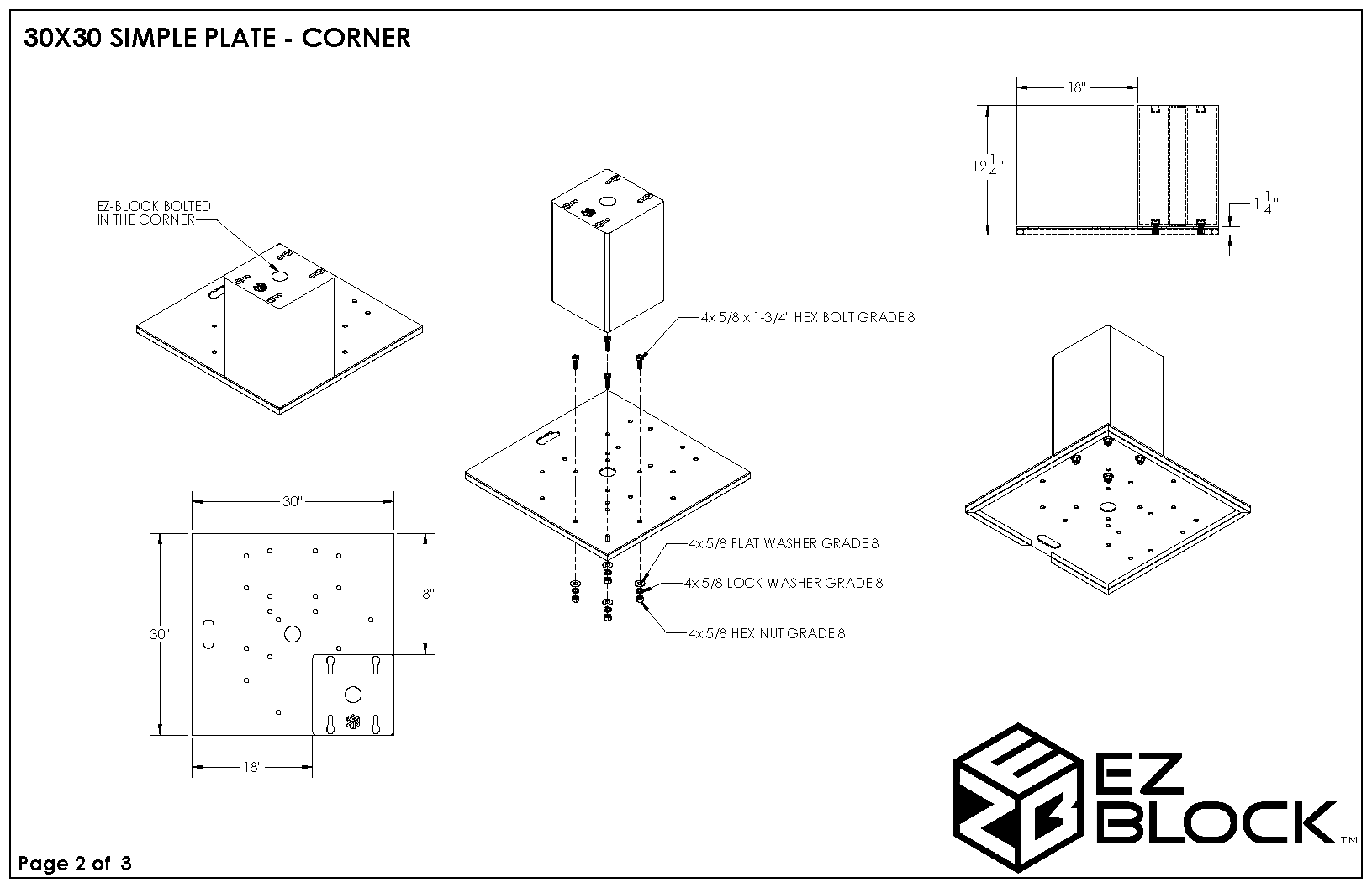

EZ BLOCK CORNER Mount to EZ Base Plate

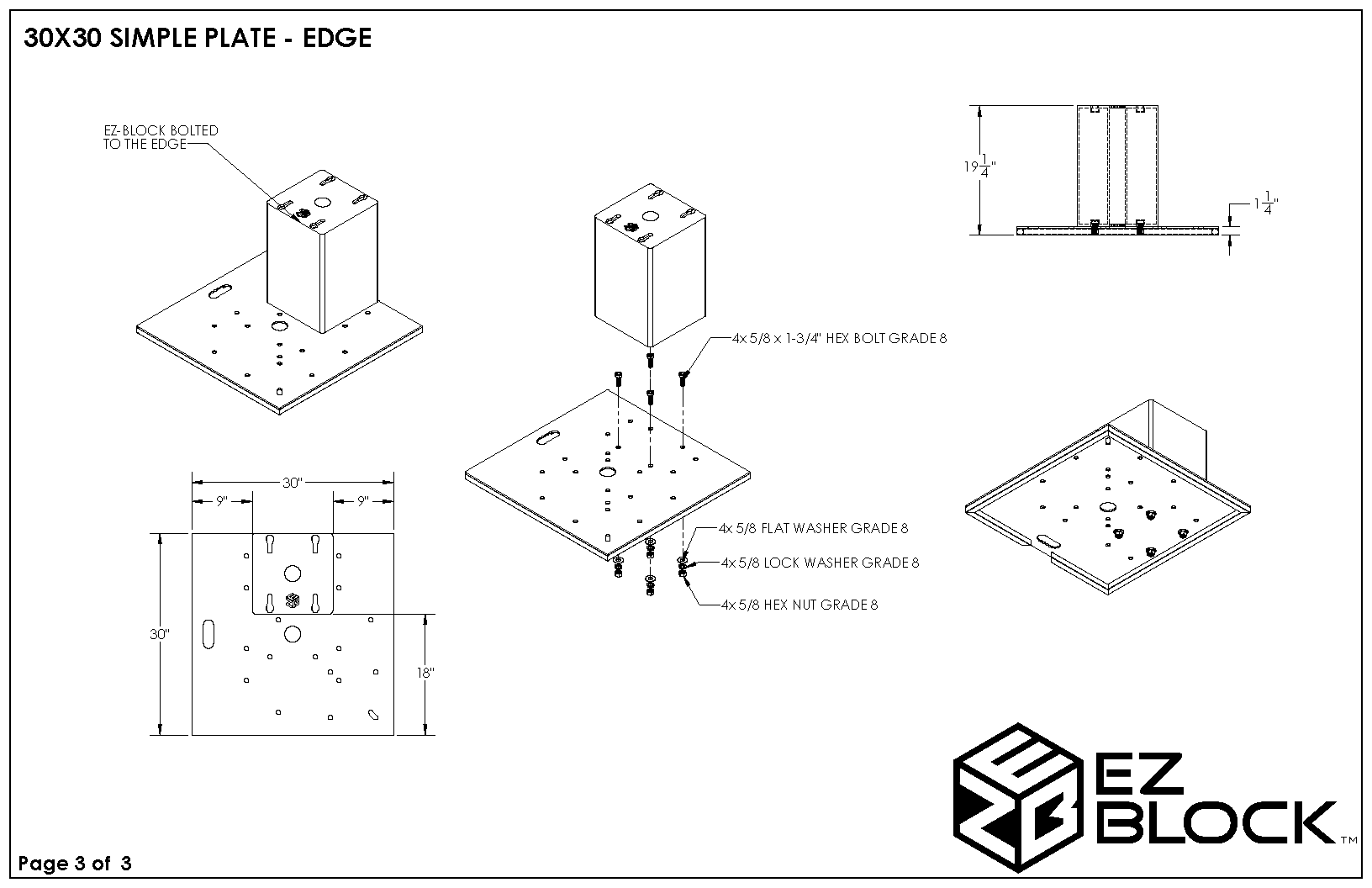

EZ BLOCK EDGE Mount to EZ Base Plate

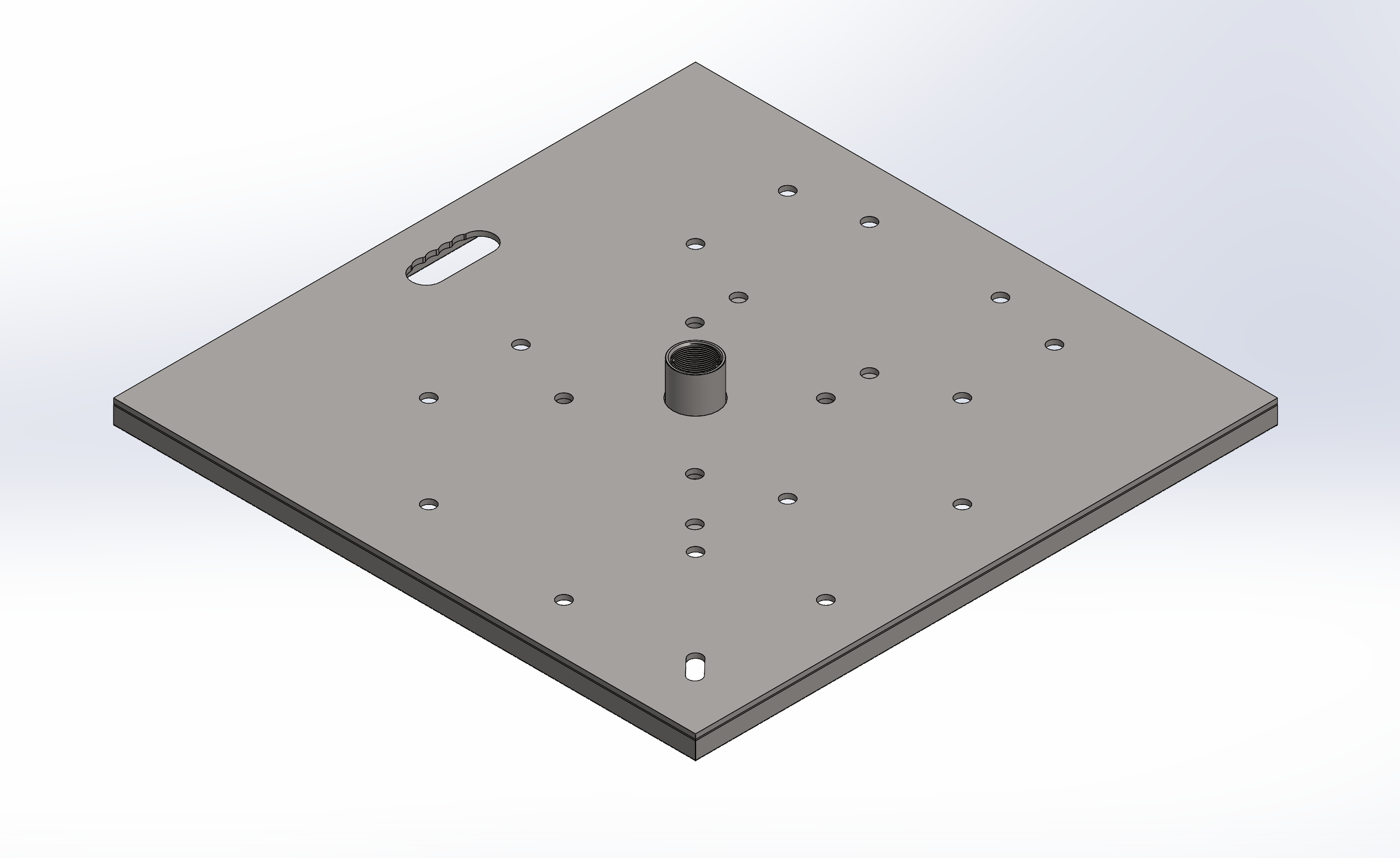

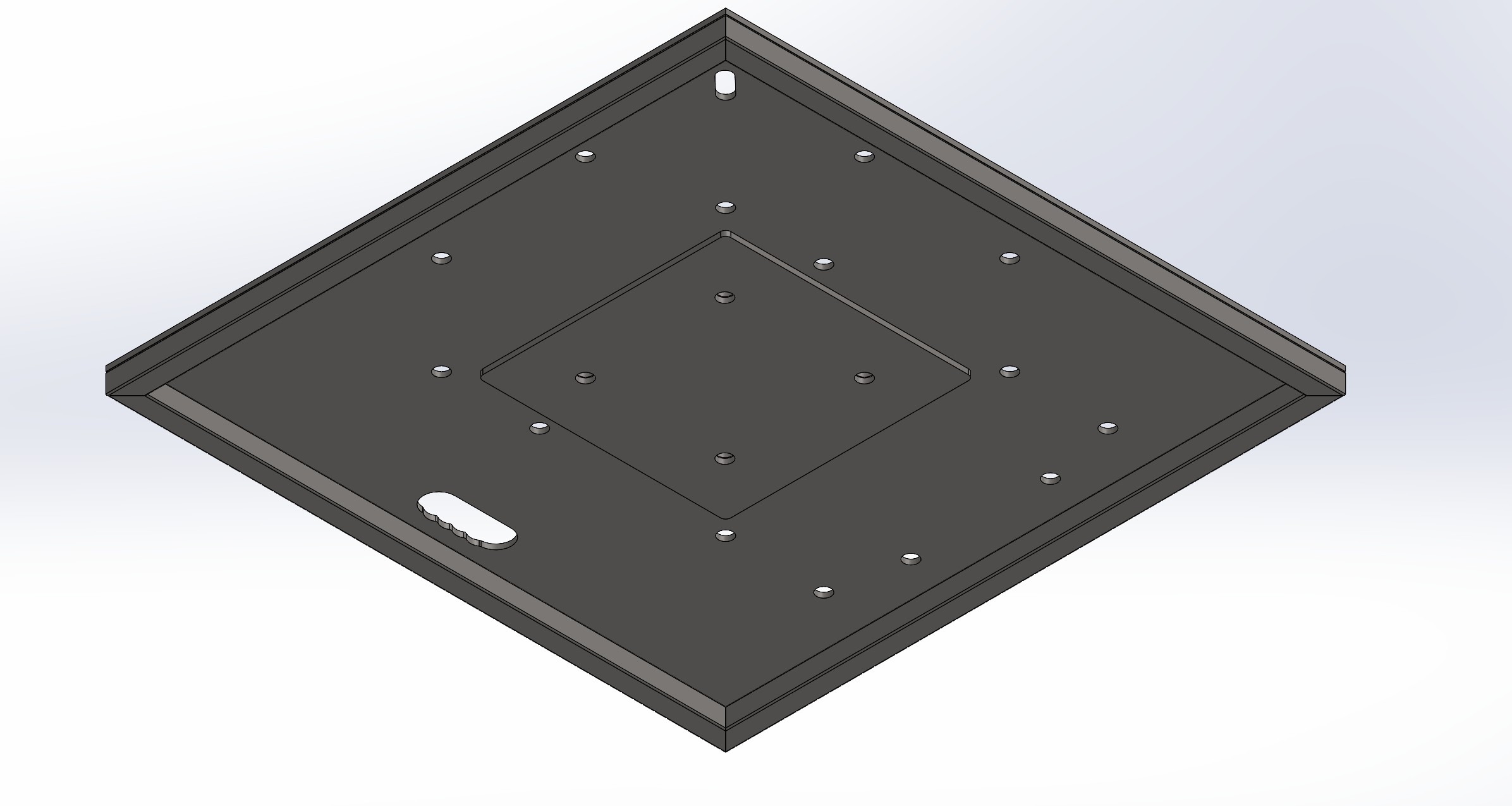

EZ BASE PLATE + S40 PLATE
Mount an EZ BLOCK to the S40 PLATE
EZ BLOCK CENTER Mount to EZ Base Plate
EZ BLOCK CORNER Mount to EZ Base Plate
EZ BLOCK EDGE Mount to EZ Base Plate

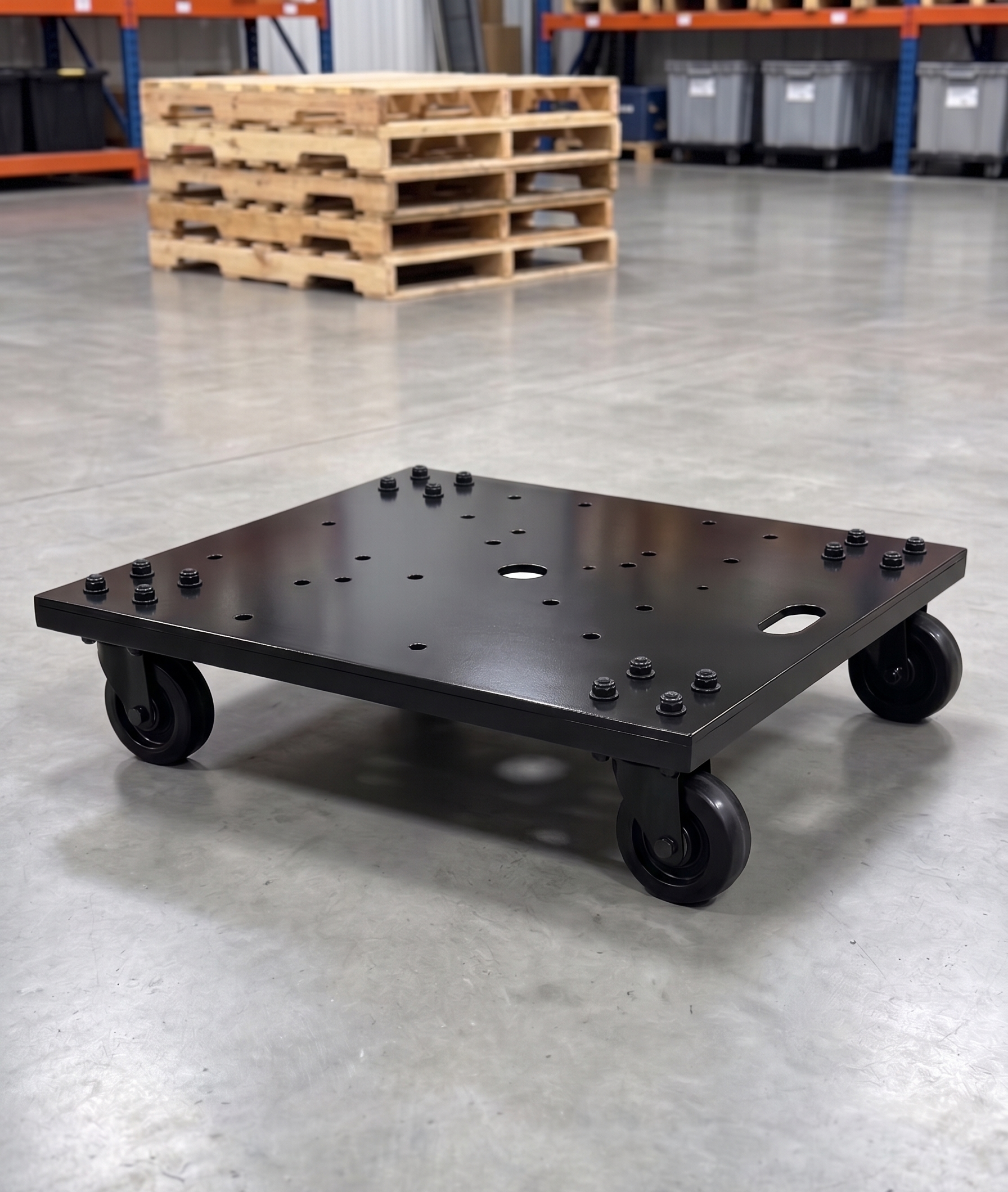

NEED THESE TO ROLL?
OK!
Casters can be applied. Look! :)
NOW WHAT? WHAT’s an S40 Plate?
