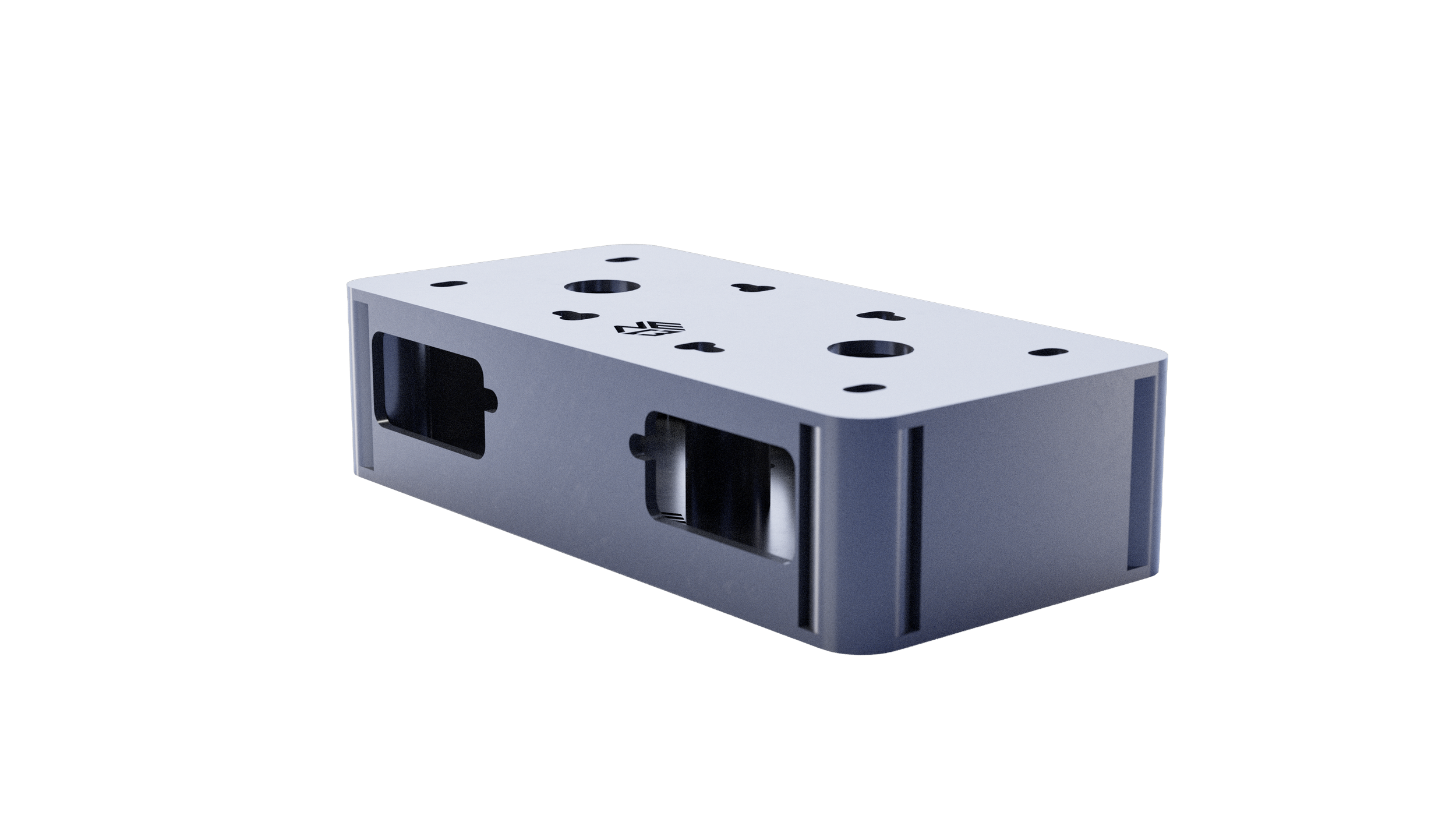

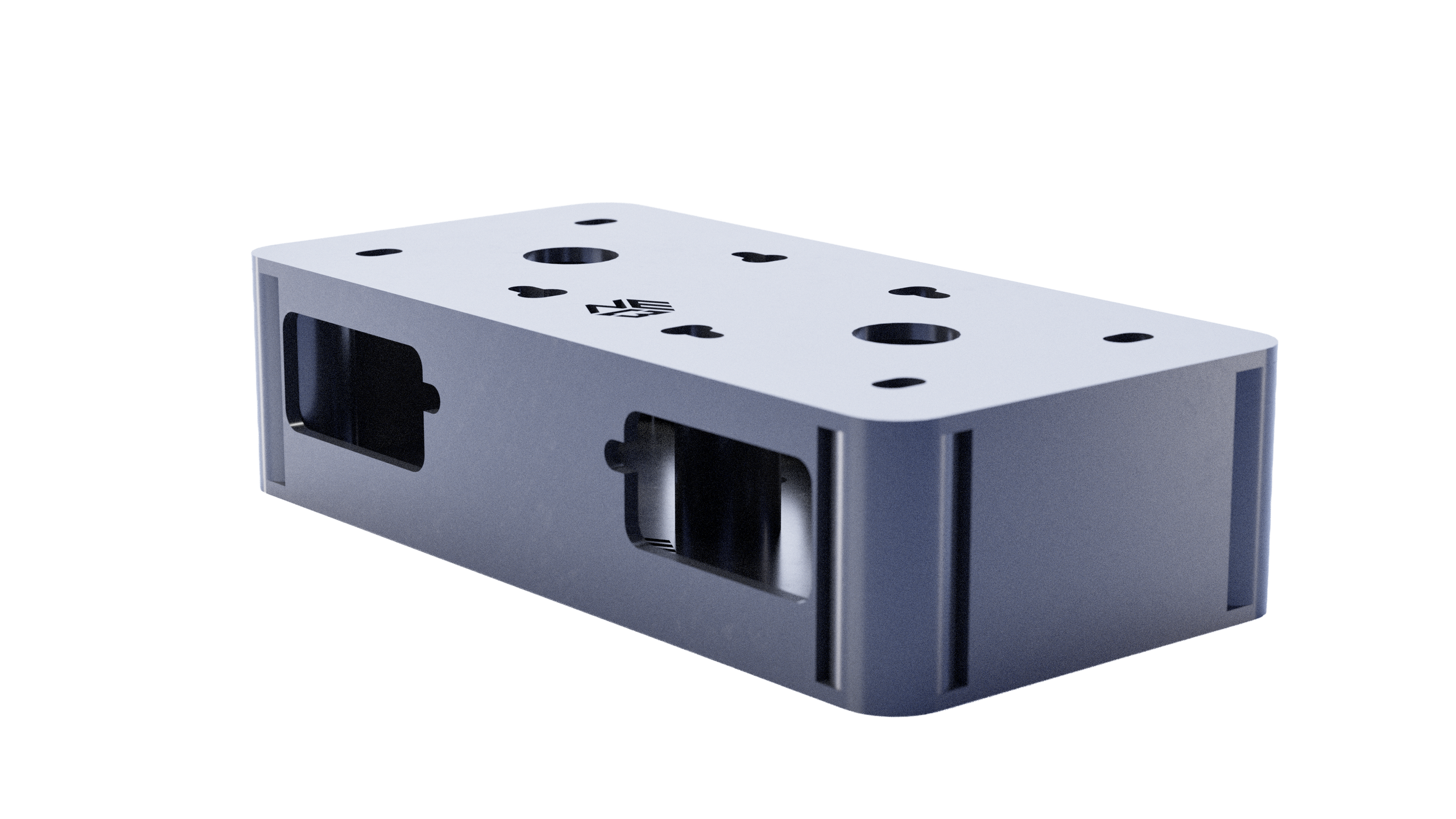

EZ HUG 1x2

The Double-Unit Anchor & Dual-Truss Bridge

The EZ BLOCK HUG 1x2 is the heavy-duty structural bridge for the entire EZ ecosystem. With a doubled footprint and reinforced steel construction, this unit provides maximum stability and unparalleled mounting flexibility for the EZ BLOCK, EZ CUBE, and EZ BRICK.

Key Features

Triple-Position Bolt Pattern: Engineered for ultimate versatility. The 1x2 can simultaneously bolt two 12" trusses, mount a single truss at either end, or center-mount one truss for a split-middle configuration.
Universal Ecosystem Fit: Seamlessly interlocks with all three EZ sizes—BLOCK, CUBE, and BRICK—allowing you to mix and match your ballast stack on a single mobile platform.
6-Inch Precision Riser: Perfectly aligns any combination of EZ units to a 24-inch structural profile, ensuring your ballast always matches standard industry truss heights.
Industrial Mobility: Integrated 4-way forklift channels allow your crew to move heavy ballast safely and efficiently, whether in the warehouse or on-site.

Detailed Specifications

Dimensions: 12" x 24" x 6"
Weight: Approximately 100 lbs
Material: Constructed from high-quality ASTM A36 Steel

ORDER EZ HUGS

"The EZ BLOCK HUG 1x2 isn't just an adapter—it's a rigging solution. With the ability to mount dual trusses or offset your load, it provides the modular freedom required for complex event structures." -Adam

1x2 EZ HUG + EZ BRICKS = 350lb event ballast

1x2 EZ HUG + EZ CUBES = 800lb event ballast

1x2 EZ HUG + EZ BLOCKS = 1100lb event ballast

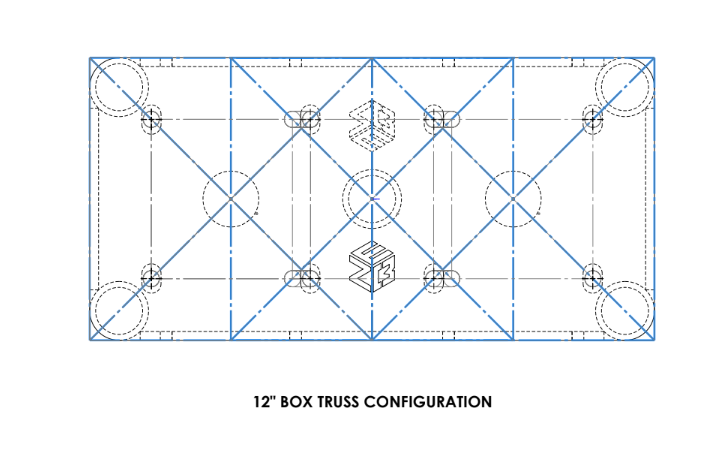

The EZ HUG 1×2 bolts to 12” x 12” box truss as indicated by the blue overlay. You can bolt to the far left, to the far right, and split the middle. Place (2) trusses on the EZ HUG [1 on each end], or (1) in the middle.
