3x3 EZ HUG + EZ BRICK

EZ HUG 3x3 + EZ BRICK | The Ultra-Wide Structural Foundation

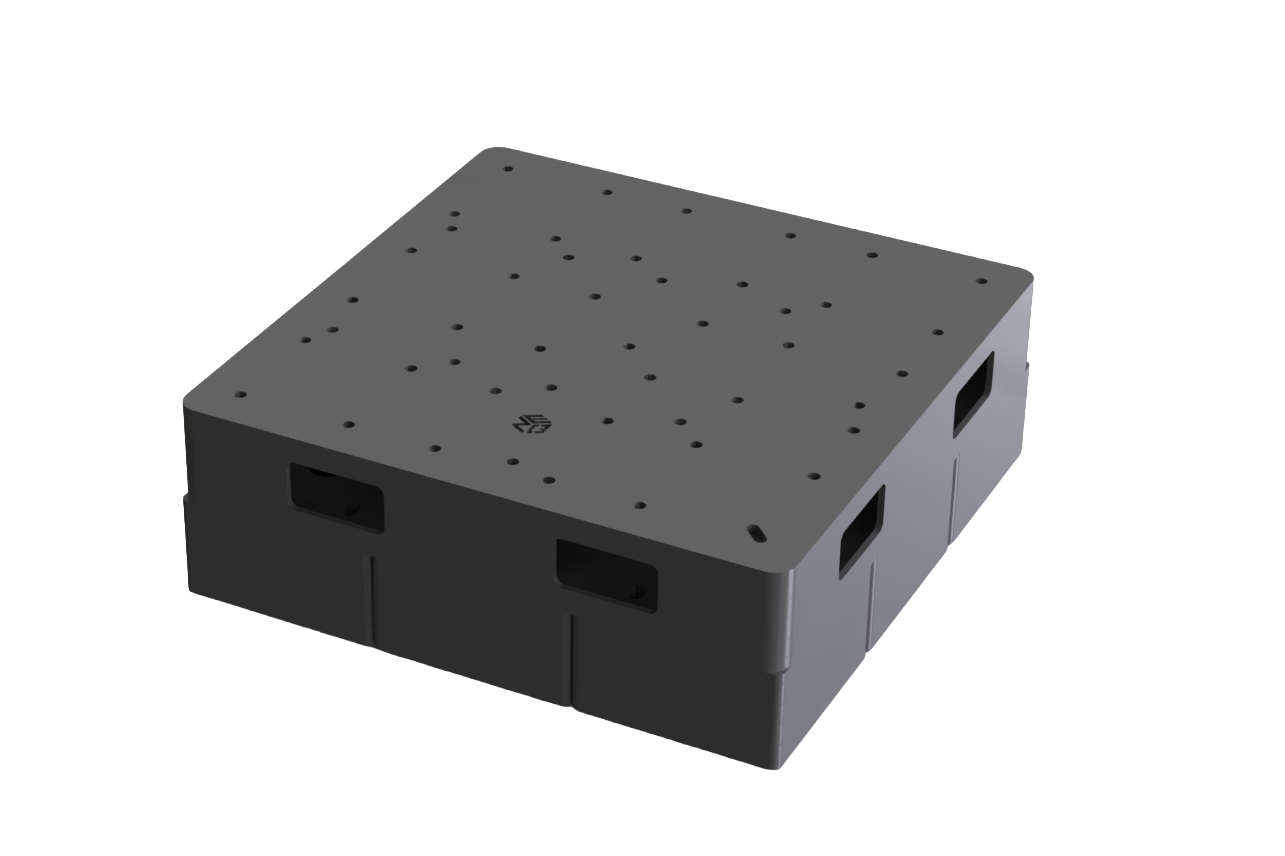

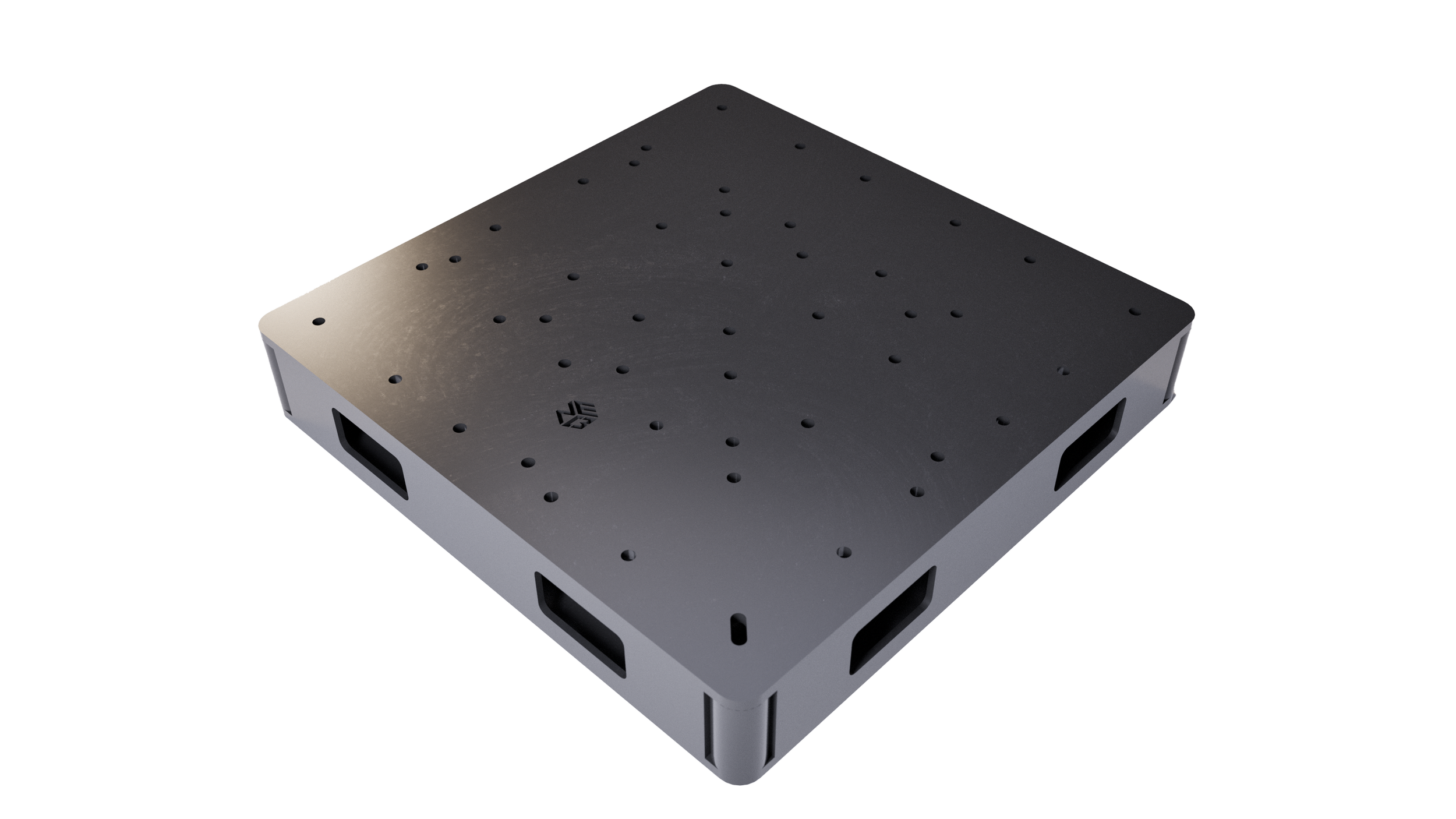

The 3x3 EZ HUG combined with nine EZ BRICKS is the ultimate solution for large-scale, high-stability rigging. This configuration creates a massive, symmetrical square footprint that provides the highest possible level of multi-directional stability. By locking nine units into a single rigid platform, you achieve an unparalleled "gravity-base" anchor for the most demanding structural applications.

Key Features

• Comprehensive Truss Versatility: The 3x3 plate is the most versatile interface in the lineup, offering a massive grid of precision-machined mounting points.

  • 12-inch Truss: Features 9 primary mounting locations, allowing you to center a single tower, mount four corner towers, or create complex multi-leg goalposts with perfect load distribution.

  • 20.5-inch Truss: Provides 5 primary mounting locations (Center, and 4 Mid-Edge positions), allowing for massive vertical columns to be anchored to the combined weight of the entire 9-brick system.

• Maximum "Anti-Tip" Footprint: The expansive 3x3 geometry maximizes the lever arm in every direction. This configuration is the industry standard for tall LED video walls and outdoor delay towers where wind-load resistance and a wide, stable base are non-negotiable.

• 9-Point Precision Leveling: Integrated ports accommodate (8) heavy-duty Screwjacks around the perimeter. This allows for ultra-precise leveling across the massive surface area, ensuring the entire 9-unit assembly sits flush on uneven terrain to maintain a perfectly plumb vertical load.

• Heavy-Duty 4-Way Forklift Access: Even at this massive scale, the assembly features integrated forklift channels. This allows a large-capacity forklift to move the entire 9-brick station as a single asset, making it a highly maneuverable solution for rapid placement on-site.

• Total Ecosystem Compatibility: Specifically designed to integrate with the EZ BRICK series. The 3x3 HUG plate acts as a structural skin, binding nine independent units into a singular, high-capacity monolith with a clean, professional finish.

• Smart Logistics for Massive Loads: Despite the size of the final assembly, logistics remain manageable. Individual bricks are dollied into a 3x3 grid by the crew, and the HUG plate is bolted down to instantly create a multi-ton structural anchor that rivals permanent concrete pads.

• Extreme-Duty Steel Build: Manufactured from premium A36 industrial steel with a durable black finish. The 3x3 plate is engineered with internal reinforcement to prevent bowing and maintain absolute structural rigidity under the immense weight and tension of 9-unit ballast arrays.
