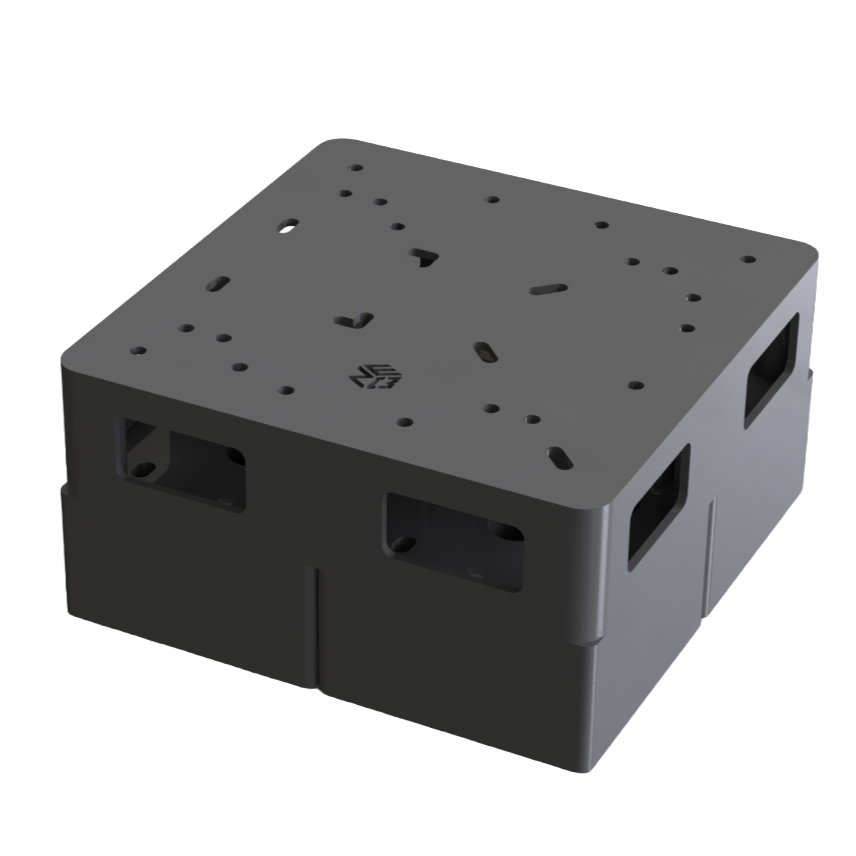

2x2 EZ HUG + EZ BRICK

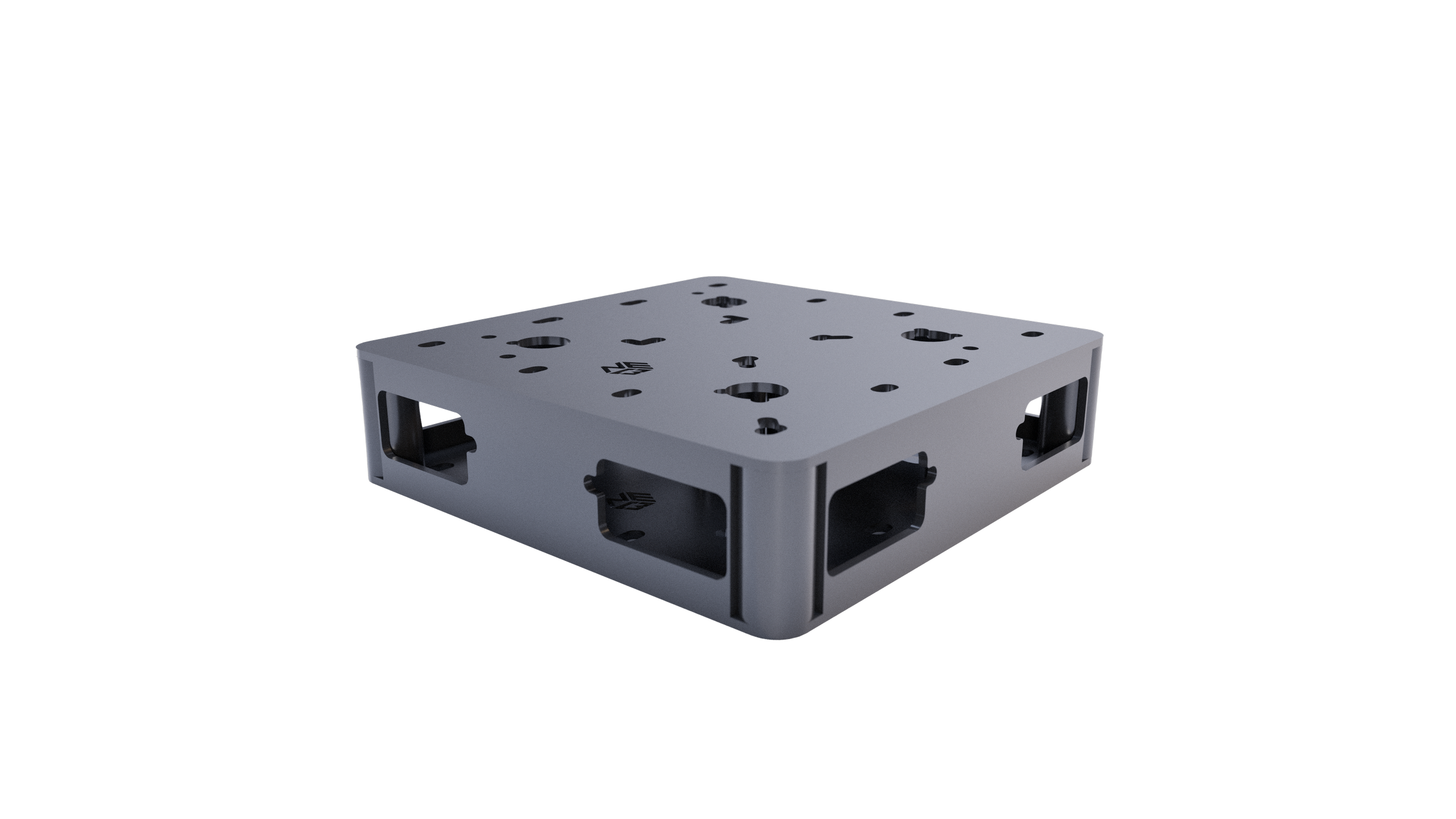

EZ HUG 2x2 + EZ BRICK | The Square-Footprint Modular Interface

The EZ HUG 2x2 combined with the EZ BRICK is the industry leader for high-stability, square-format modular mounting. This configuration provides a broad, symmetrical footprint that maximizes multi-directional stability, allowing you to "hug" large-scale rigging and truss systems to a precision-engineered, four-brick foundation.

Key Features

• Maximum Truss Versatility: Engineered with an expansive bolt pattern to accommodate both 12-inch and 20.5-inch box truss.

  • 12-inch Truss: Features 6 mounting positions, including all 4 corners, the center, and the edge. The design is robust enough to support (4) 12-inch truss columns bolted simultaneously.

  • 20.5-inch Truss: Can be mounted in the center, corner, or edge positions for heavy-duty offset loading.

• Precision Leveling: Integrated ports allow for the addition of (4) Screwjacks. This enables you to perfectly level the entire quad-brick assembly on uneven terrain, ensuring your towers remain plumb and structurally sound.

• 4-Way Forklift Mobility: Once assembled, heavy-duty channels provide secure forklift access from any of the four sides. This turns a high-capacity ballast setup into a highly maneuverable asset for rapid placement.

• Total Ecosystem Compatibility: Specifically designed to integrate flawlessly with the EZ BRICK. This 2x2 configuration ensures perfect height matching across four units for a seamless, professional finish.

• Modular Assembly: Designed for smart logistics—each individual EZ BRICK can be moved into position using a standard dolly. Once in position, the 2x2 Hug bolts the units together to form a rigid, high-capacity structural anchor.

• Industrial Steel Build: Manufactured from heavy-duty A36 steel with a durable black finish, built to withstand the rigors of tour life and intense warehouse cycling.
