2x2 EZ HUG + EZ cube

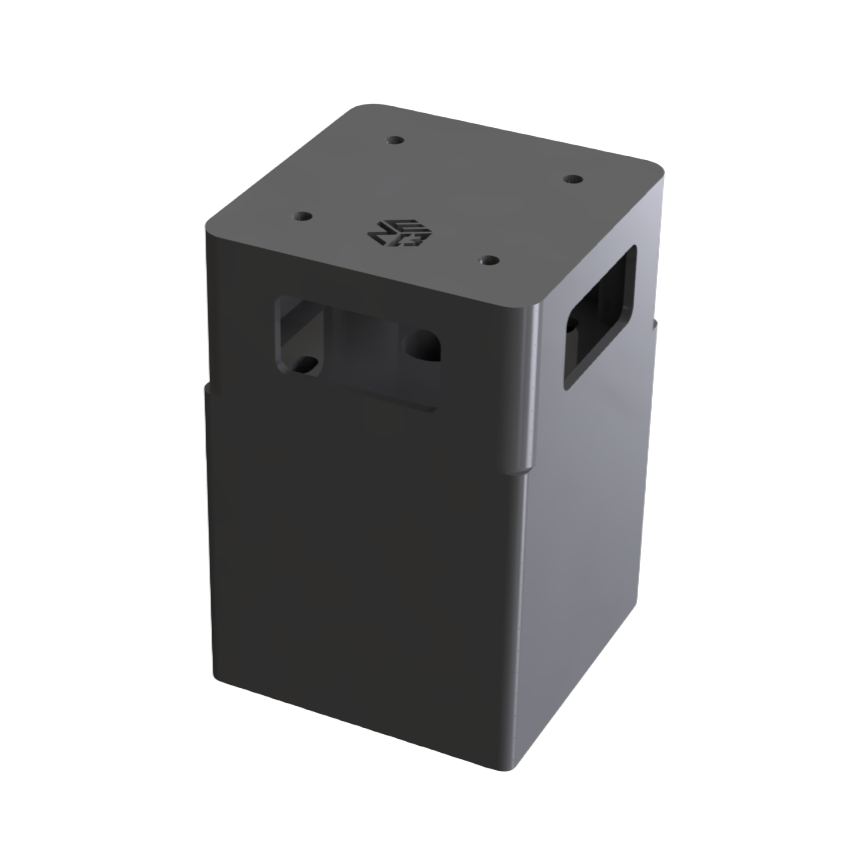

EZ HUG 2x2 + EZ CUBE | The Powerhouse Pairing
The EZ HUG 1x1 paired with the EZ CUBE provides a heavy-duty foundation for demanding structural builds. This combination offers the perfect blend of maximum ballast weight and precision mounting, allowing you to "hug" large-scale rigging components to a rock-solid base.
Key Features
Perfect Ecosystem Compatibility: The EZ HUG 1x1 is precision-engineered to interlock flawlessly with the EZ CUBE. This ensures seamless vertical stacking, allowing you to build height while maintaining a perfectly level and secure footprint.
Truss & Base Plate Ready: Equipped with a standard 12-inch box truss bolt pattern, the 1x1 Hug acts as the ultimate adapter for mounting standard truss directly to an EZ CUBE stack or an EZ BASE PLATE.
4-Way Forklift Mobility: Built-in channels provide forklift access from any side. This makes even the heaviest EZ CUBE setups highly maneuverable, allowing for rapid placement and strikes.
Dolly-Friendly Utility: Despite its heavy-duty rating, the system is designed for versatility—you can move the unit across flat surfaces using a standard dolly when a forklift isn't available.
Tour-Ready Construction: Manufactured from industrial A36 steel and finished in a durable black coating. This setup is built to endure the high-impact environment of touring, outdoor events, and constant warehouse cycling.
Detailed Specifications
Dimensions: 12" x 12" x 18"
Weight: Approximately 400 lbs
PARTS: (1) EZ CUBE + (1) 1×1 EZ HUG
Material: Constructed from high-quality ASTM A36 Steel
1x1 EZ HUG + EZ BRICK = 175lbs
1x1 EZ HUG + EZ CUBE = 400lbs
1x1 EZ HUG + EZ BLOCK = 550lbs

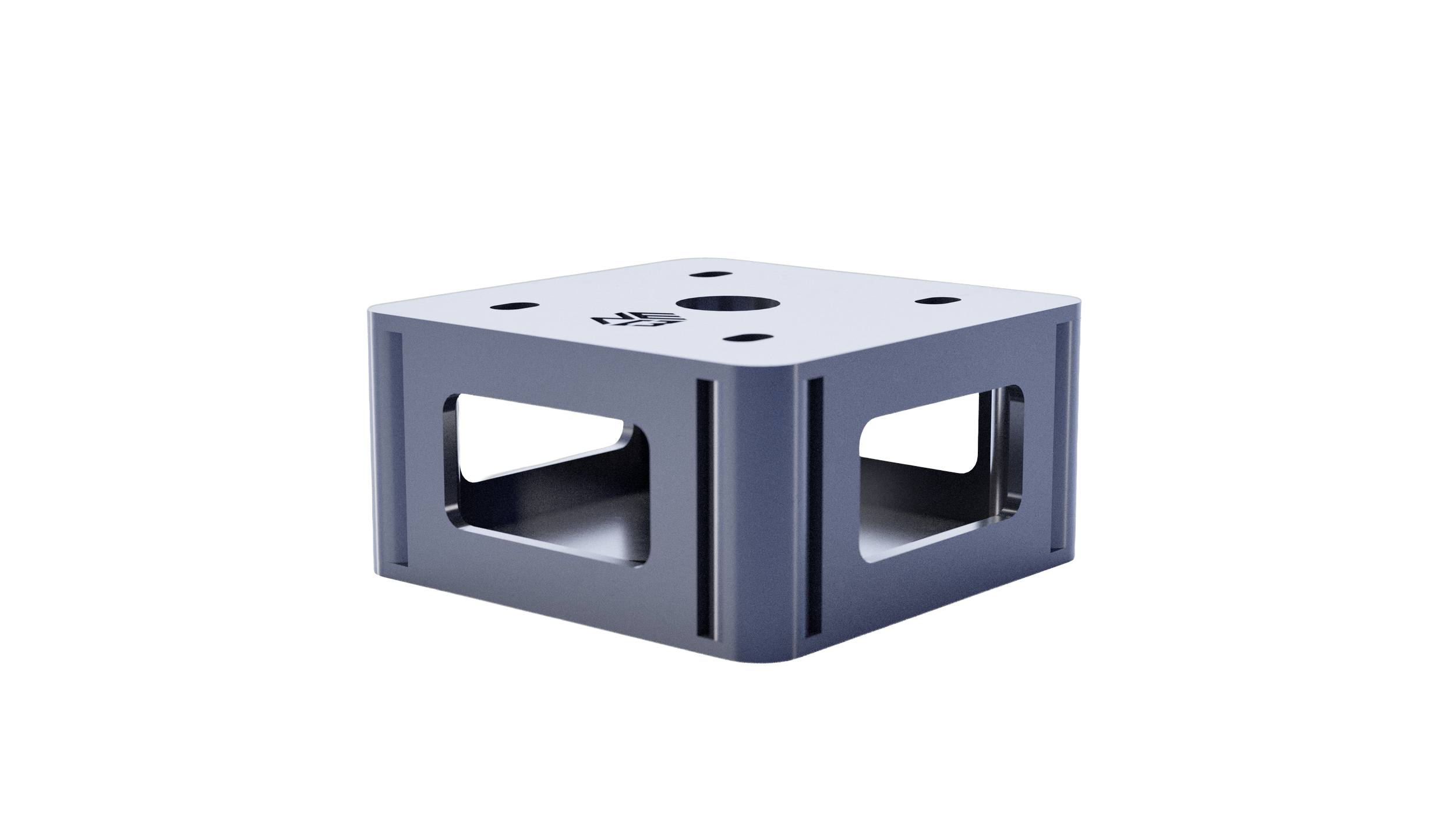

The EZ HUG 1×1 bolts to 12” x 12” box truss as indicated by the blue overlay.
DOWNLOADS
VectorWorks Library DOWNLOAD v2025
VectorWorks Library DOWNLOAD v2026
DWG Library DOWNLOAD
STEP Library DOWNLOAD
